Fuel: GAS & E85

Horsepower: 750+ at 60 PSI (naturally aspirated applications)

Fuel Inlet Diameter: -10 AN ORB Female (7/8-14 SAE)

Fuel Outlet Diameter: -8 AN ORB Female (3/4-16 SAE)

Flow Rate (nominal 20°C): 430lph @ 43.5psi (114+ GPH)

Test Voltage: 13.5 Volts

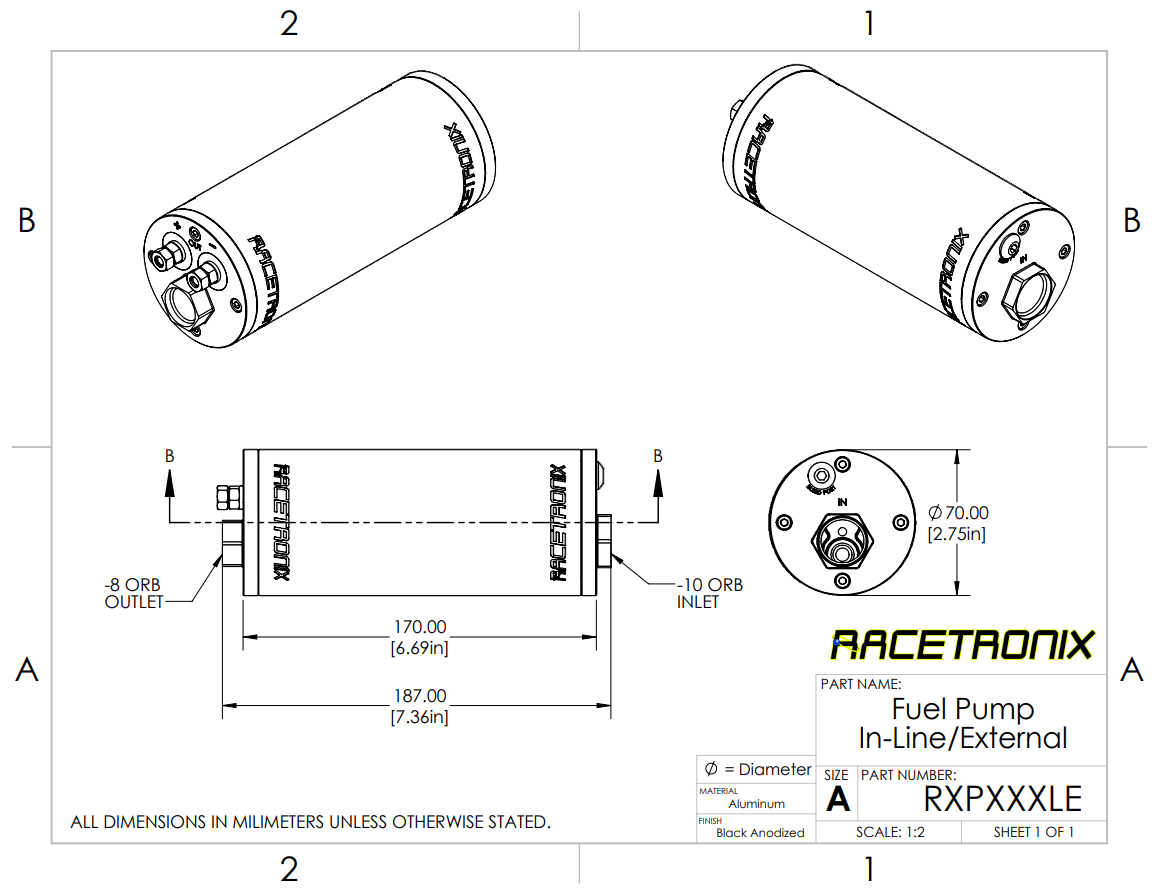

Over All Pump Length: see drawings below

Main Housing Diameter: see drawing >>

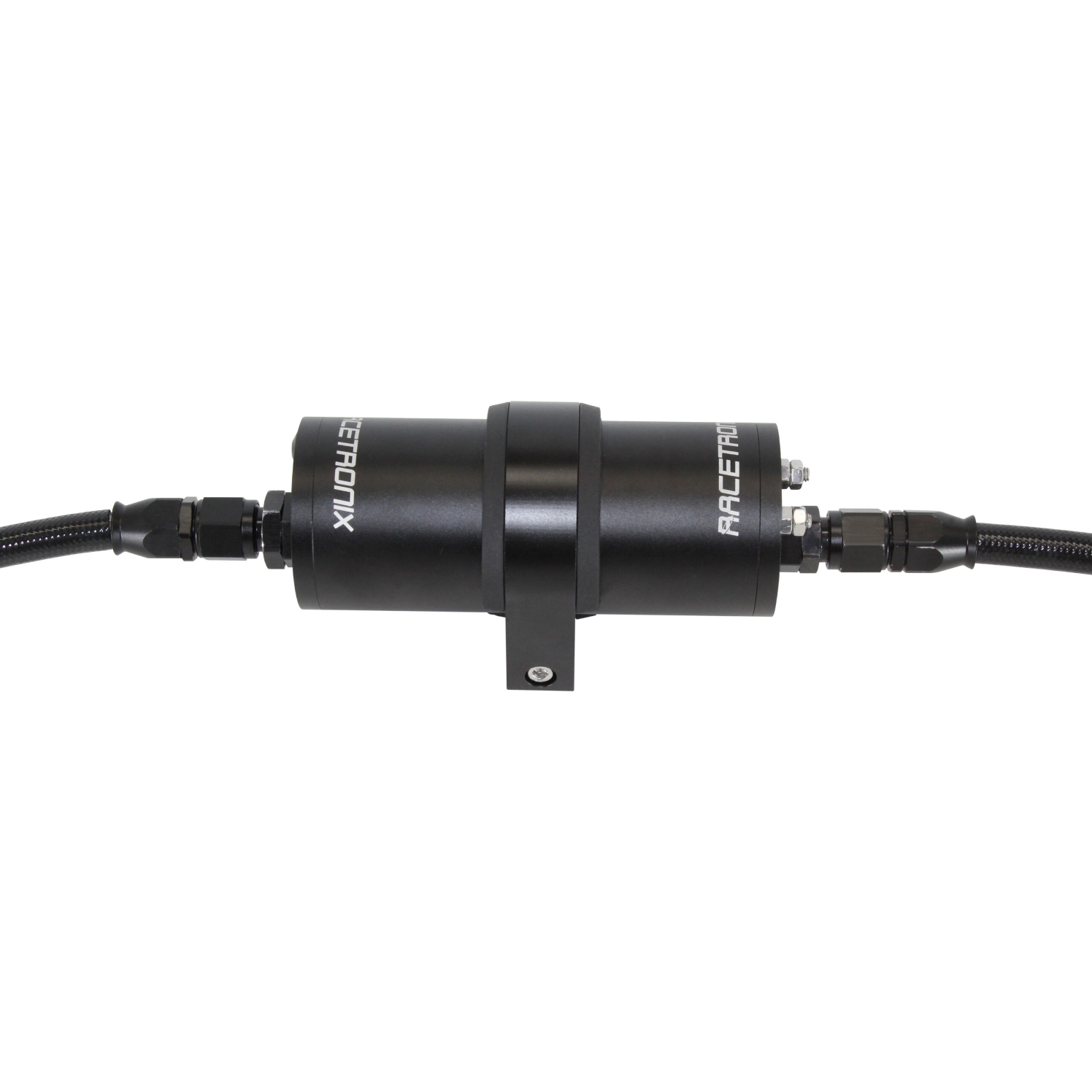

This pump must be gravity fed to prevent loss of prime. A -10 feed and -8 oulet PTFE hose is recommended for maximum performance. A minimal -8 feed and -6 outlet PTFE hose is required to prevent damage to the pump. Filters with adequate size/surface area are required. Failure to provide proper sized hoses and filters will greatly reduce pump performance and life.

Racetronix highly recommends using a 30-micron pre-filter (inlet) to protect the pump and a 10-micron post-filter (outlet) to protect the injectors and motor.
